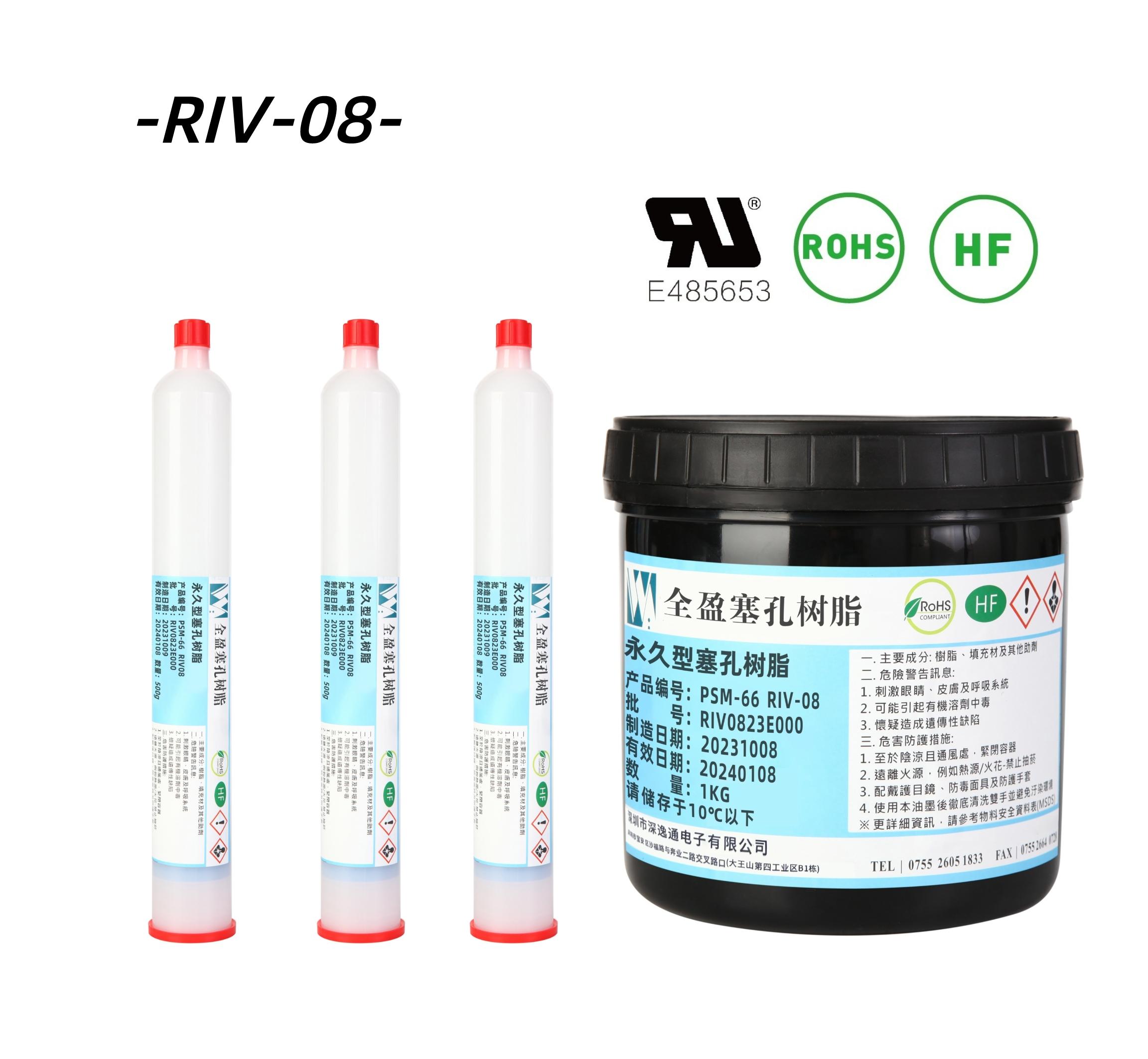

PSM-66 RIV-08 plug hole resin is a halogen-free product, no solvents and other harmful volatiles in the resin, this resin is a low-temperature curing resin for high TG, low CTE, suitable for use in high-frequency, high-speed materials and mixed-pressure plates, excellent high-temperature resistance, no cracking, low diffusion, low water absorption, strong adhesion of the excellent resin.
Fields of application
PSM-66 RIV-08 plug hole resins are used in high value-added products such as PTFE+Backdrill+Mixed Press, POFV, HDI and others.

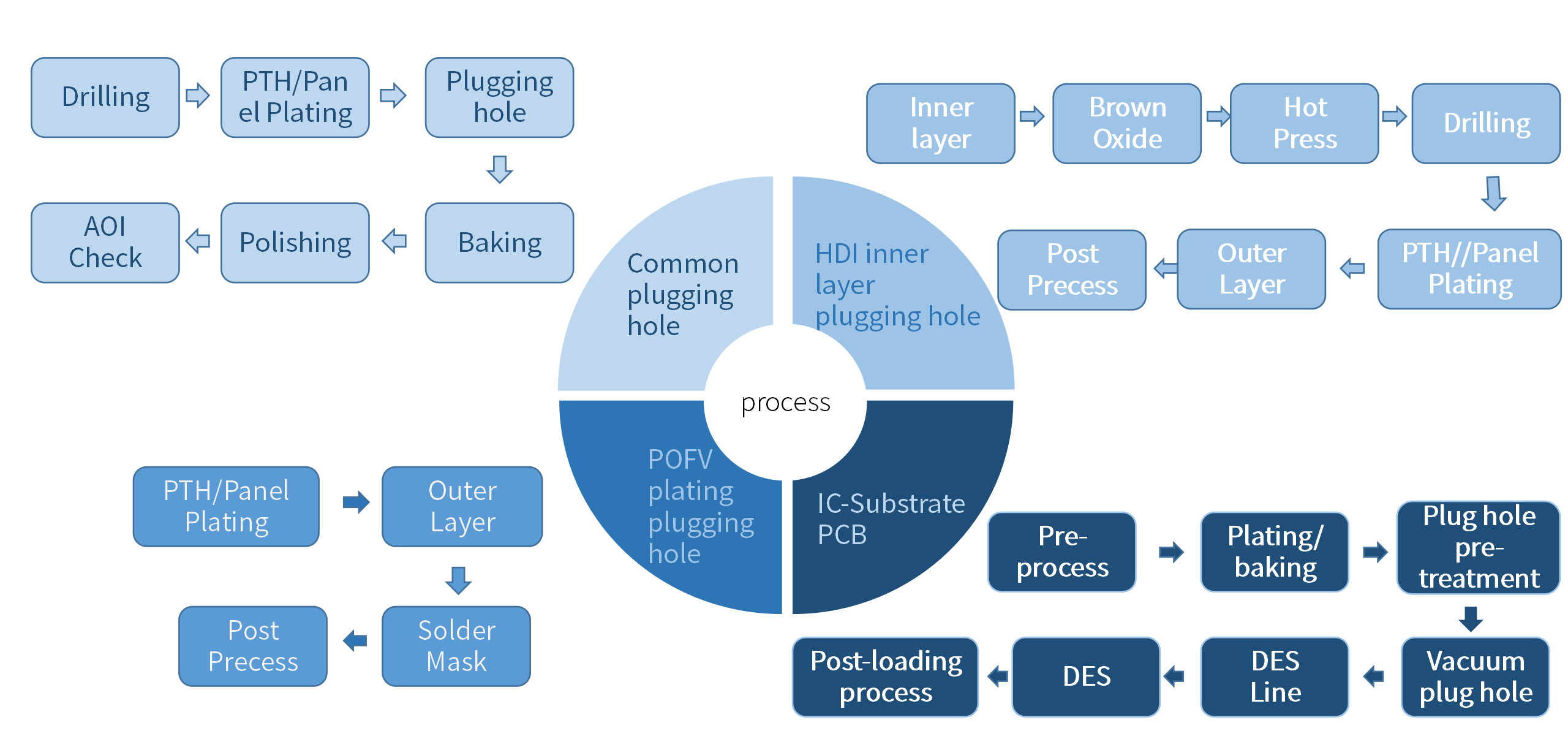

Illustration of plug holes for each type of plate
Technical Specifications
| NO. | Physical indicator | Test Methods | Reference Standard | Test results |
| 1 | Product Appearance | visual assessment | / | Yellowish white |
| 2 | Solid Content | Thermal Weightlessness | GB 1725-79 | 100% |
| 3 | Tg | TMA（℃） | IPC-TM-650 2.4.24 | 160-170 |
| 4 | CTE | TMA（＜Tg）α1（ppm） | IPC-TM-650 2.4.24 | 40-50 |
| TMA（＞Tg）α2（ppm） | IPC-TM-650 2.4.24 | 90-100 | ||
| 5 | Water Absorption | Gravimetric method（%） | IPC-TM-650 2.6.2.1 | <0.1 |
| 6 | Hardness | Pencil method | IPC-TM-650 2.4.27.2 | ≥7H |
| 7 | Insulation Resistance | Voltage method（Ω） | GB/T 10064-2006 | 1-3*10¹³ |
| 8 | Adhesion | Baige +3m tape method | IPC-TM-650 2.4.1 | 100/100 |
| 9 | Heat-proof material | Reflow soldering 260℃.60sec.3 cycle | IPC-TM-650 2.1.1.2 | Pass |
Thermal Stress 288℃.10sec.5 cycle | IPC-TM-650 2.6.8 | Pass | ||
| 10 | Chemical corrosion resistance | 10wt% NaOH 25℃*30min | IPC-TM-650 2.3.4.3 | Pass |
| 11 | TCT test | -50℃/30minó150℃/30min | IPC-TM-650 2.6.7.2 | Pass |
| 1000cycles | ||||
| 12 | Viscosity （25℃） | VISCOMETER TV-06 | - | 400-600 |
